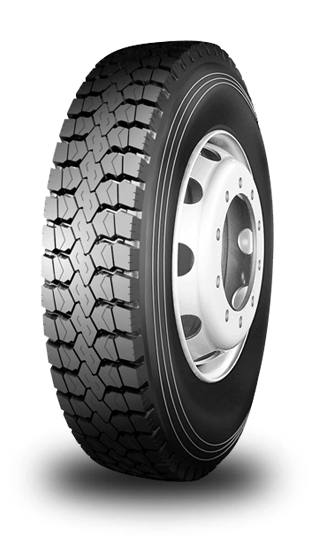

LM302
Position Highway Service
An all season drive axel for trucks and buses. Excellent for long distance use. The pattern design provides a firm grip and superb water drainage on wet roads. The rubber compound is designed for extra long tread life.

Tire Size	Load Range/Ply Rating	Rim Size (Inches)	Inflated Dimensions				Tread Depth
			Section		Overall
			(mm)	(Inches)	(mm)	(Inches)	(mm)	(Inch/32)
315/80R22.5	L/20	9	315	12.4	1092	43.0	21.3	26.8
295/80R22.5	H/16	9	298	11.7	1044	41.1	20.5	26.8
12R22.5	H/16	9	300	11.8	1104	43.5	20.5	25.8
